GMRS Repeater Usage and Funding Information
This page lists those who have supported the operation and or construction of the GMRS repeater in Mohawk Valley areas of Central New York operated by Bob Carter, WQJK414. The repeater is open for public use and REACT. Occasional use without advance permission is fine, but for routine use please contact the repeater owner. While using the repeater, don't forget to ID every 15 minutes as per FCC rules...you may be asked to ID yourself with your call sign. If so, don't forget to say "Hi" to the repeater owner!
There was once one active business repeater in the region. The repeater was active in the area on 462.650, but it is unknown at this point who owns it or what happened...but it does sound mostly like a grandfathered business operation, so for day to day regular type comms, you are more than welcome to use the repeater on 462.600mhz and not interfere with the business comms on 462.650mhz if they still in operation.
462/467.600 Inghams Mills and the Mohawk Valley
area
Limited Area/Coverage
Public Access Tone: 103.5, Open Squelch Receive recommended
A License is required to use GMRS radios.
Some details on the 462.600 repeater. It is a 50w UHF repeater
using 1/2" Heliax Hardline with a UHF Ringo Ranger, omni directional. The TX antenna
will eventually be at 40ft above ground. The range will vary on location due to the
urban and suburban environment and area mountainous/hilly terrain (i.e. buildings, obstructions etc).
Write to us via email to obtain permission to use this repeater. Please include your name, callsign, location and purpose for for using the repeater.

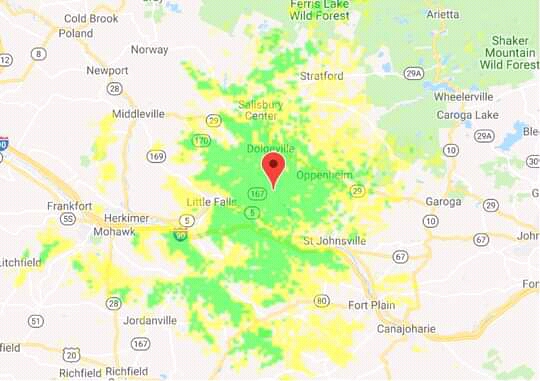

This repeater, while the antenna is currently not very high, has coverage mainly aiong the New York State Thruway (I-90) from just east of St. Johnsville to an area between Herkimer/Little Falls. Coverage due to the terrain favors the east.
For more info, or to sign up for repeater
sharing, contact Bob Carter, repeater owner, email info on the "Contact Us" page.
Use the WQJK414 GMRS email address.
Join the WQJK414 Repeater page! WQJK414 Repeater Group on Facebook
Contributor Name |
Contribution Description |
Contribution Date |
Comments |
Bob Carter |
Kenwood radios, 1/2" Heliax Hardline, antenna, duplexer, mast |
Oct 2008 |
Owner |
GMRS/FRS frequency table
All channels are used with narrow-band frequency modulation.
Name |
Lower frequency (repeater output) (MHz) |
Upper frequency (repeater input) (MHz) |
Motorola convention |
Icom F21-GM convention |
Notes |
| "550" | 462.550 | 467.550 | Ch. 15 | Ch. 1 | |
| "575" | 462.575 | 467.575 | Ch. 16 | Ch. 2 | |
| "600" | 462.600 | 467.600 | Ch. 17 | Ch. 3 | The frequency of the WQJK414 repeater, Inghams Mills NY |
| "625" | 462.625 | 467.625 | Ch. 18 | Ch. 4 | |
| "650" | 462.650 | 467.650 | Ch. 19 | Ch. 5 | Use not permitted near the Canadian border. |
| "675" | 462.675 | 467.675 | Ch. 20 | Ch. 6 | Suggested nationwide emergency and road information calling. Nationally recognized coded squelch for 675 emergency repeater operation is 141.3 Hz. |
| "700" | 462.700 | 467.700 | Ch. 21 | Ch. 7 | Use not permitted near the Canadian border. |
| "725" | 462.725 | 467.725 | Ch. 22 | Ch. 8 |
This second set of frequencies shows the interstitial ranges shared with the Family Radio Service services. These frequencies can only be used for simplex operations.
Name |
Frequency (MHz) |
Motorola convention |
Icom F21-GM convention |
Notes |
| "5625" or "FRS 1" | 462.5625 | Ch. 1 | Ch. 9 | |
| "5875" or "FRS 2" | 462.5875 | Ch. 2 | Ch. 10 | |
| "6125" or "FRS 3" | 462.6125 | Ch. 3 | Ch. 11 | |
| "6375" or "FRS 4" | 462.6375 | Ch. 4 | Ch. 12 | |
| "6625" or "FRS 5" | 462.6625 | Ch. 5 | Ch. 13 | |
| "6875" or "FRS 6" | 462.6875 | Ch. 6 | Ch. 14 | |
| "7125" or "FRS 7" | 462.7125 | Ch. 7 | Ch. 15 |
| FRS Channel | Frequency | FRS Power | FRS Bandwidth | GMRS Power | GMRS Bandwidth | Notes/Usage |
|---|---|---|---|---|---|---|
| 01 | 462.5625 | 2 W | 12.5 kHz | 5 W | 20 kHz | (1) |
| 02 | 462.5875 | 2 W | 12.5 kHz | 5 W | 20 kHz | (1) |
| 03 | 462.6125 | 2 W | 12.5 kHz | 5 W | 20 kHz | (1) |
| 04 | 462.6375 | 2 W | 12.5 kHz | 5 W | 20 kHz | (1) |
| 05 | 462.6625 | 2 W | 12.5 kHz | 5 W | 20 kHz | (1) |
| 06 | 462.6875 | 2 W | 12.5 kHz | 5 W | 20 kHz | (1) |
| 07 | 462.7125 | 2 W | 12.5 kHz | 5 W | 20 kHz | (1) |
| 08 | 467.5625 | 0.5 W | 12.5 kHz | 0.5 W | 12.5 kHz | (1) |
| 09 | 467.5875 | 0.5 W | 12.5 kHz | 0.5 W | 12.5 kHz | (1) |
| 10 | 467.6125 | 0.5 W | 12.5 kHz | 0.5 W | 12.5 kHz | (1) |
| 11 | 467.6375 | 0.5 W | 12.5 kHz | 0.5 W | 12.5 kHz | (1) |
| 12 | 467.6625 | 0.5 W | 12.5 kHz | 0.5 W | 12.5 kHz | (1) |
| 13 | 467.6875 | 0.5 W | 12.5 kHz | 0.5 W | 12.5 kHz | (1) |
| 14 | 467.7125 | 0.5 W | 12.5 kHz | 0.5 W | 12.5 kHz | (1) |
| 15 | 462.5500 | 2 W | 12.5 kHz | 50 W | 20 kHz | (1) (2) |
| 16 | 462.5750 | 2 W | 12.5 kHz | 50 W | 20 kHz | (1) (2) |
| 17 | 462.6000 | 2 W | 12.5 kHz | 50 W | 20 kHz | (1) (2) |
| 18 | 462.6250 | 2 W | 12.5 kHz | 50 W | 20 kHz | (1) (2) |
| 19 | 462.6500 | 2 W | 12.5 kHz | 50 W | 20 kHz | (1) (2) |
| 20 | 462.6750 | 2 W | 12.5 kHz | 50 W | 20 kHz | (1) (2) |
| 21 | 462.7000 | 2 W | 12.5 kHz | 50 W | 20 kHz | (1) (2) |
| 22 | 462.7250 | 2 W | 12.5 kHz | 50 W | 20 kHz | (1) (2) |
| 467.5500 | 50 W | 20 kHz | (3) | |||
| 467.5750 | 50 W | 20 kHz | (3) | |||
| 467.6000 | 50 W | 20 kHz | (3) | |||
| 467.6250 | 50 W | 20 kHz | (3) | |||
| 467.6500 | 50 W | 20 kHz | (3) | |||
| 467.6750 | 50 W | 20 kHz | (3) | |||
| 467.7000 | 50 W | 20 kHz | (3) | |||
| 467.7250 | 50 W | 20 kHz | (3) |
